DRX-4 - Complete selection of pharmacy scales and balances

Designed and certified specifically for prescription weighing and compounding, the DRX-4 is an ideal pharmacy scale. The balance is built with rugged die-cast metal housing and an electromagnetic force restoration weighing load cell which provides superior accuracy and stability at all times. The DRX-4 has a capacity of 120g and a weighing accuracy of 1mg (0.001g).

CC#. 04-061

Functions and Features

Standard Features

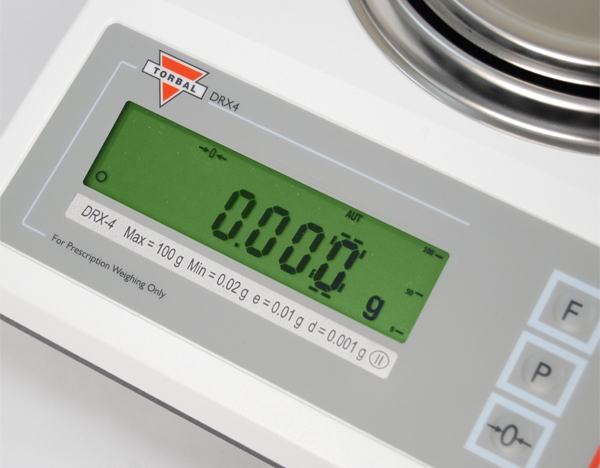

Large LCD Display
Easy-to-use leveling system

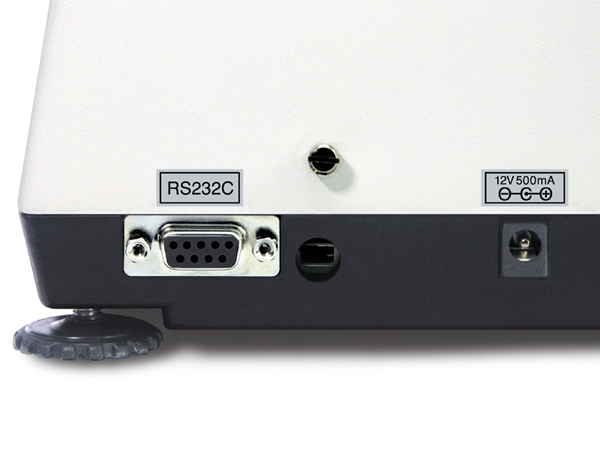

RS-232 Interface
Sealed front panel
Capacity indicator
Stability and Net indicators
Draft Ring
Auto zero (AZSM)
Center of Zero indicator

Description

The DRX-4 is an ideal class II pharmacy scale. It was designed specifically for pharmacy use and it has been NTEP certified as legal for trade in prescription weighing. The DRX-4 is very robust, affordable and most important very accurate. It has a 120 gram capacity, with a resolution of .001 grams (1 milligram), it has a tare capacity equal to its range, and provides a display of scale capacity used (in percent) whenever weighing. The need for a draft shield is eliminated by the unique design of the pan shield. The die-cast metal base uses a tripod support system, with two adjustable legs and one fixed leg, which, when combined with a bubble level indicator, provides the user with an easy to level scale. The dustproof, spill-proof keyboard with easy to read standard symbols makes for a simple user interface and eliminates the need for special training.

Specifications

Model	DRX-4
Capacity (Max)	120g
Minimum Load (Min)	0.02g
Reading Unit (d)	0.001g
Verification Unit (e)	0.01g
Tare Range	-120g
Accuracy Class	II
Temperature	+15C to +30C
Weighing Time	<3s
Pan Dimension	116 mm
Scale Dimensions	235 x 245 x 80 mm
Power Input	120VDC 60Hz 9.5W
Power Output	12VDC 500mA
Scale	8.2 / 3.7
Calibrating Weight	100g

Product Gallery

Information

Services & Support

NTEP Certifications

All models are NTEP - certified as prescription scales with approved pill counting features, and meet handbook 44 requirements for a "Class A" prescription balance.

View All Certifications

General Services Administration

All TORBAL DRX pharmacy scales are available for purchase by Federal Government institutions under GSA contract terms and conditions.
