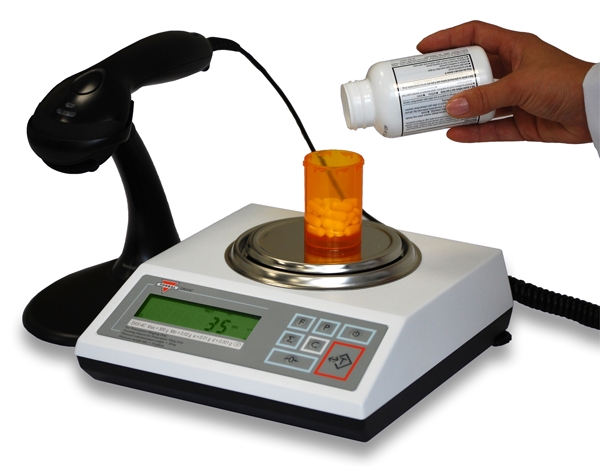

DRX-4C KIT - Automatic pill counters and counting scales

The KIT combines the DRX-4C scale with our RXP-4 thermal printer and a calibration weight to optimize the pill counting feature. The KIT is ideal for anyone that requires a paper trail of performed pill counts. The printer produces a pill counting receipt which includes transaction details such as, the date, time, NDC number of the counted drug, as well as the actual count…

Functions and Features

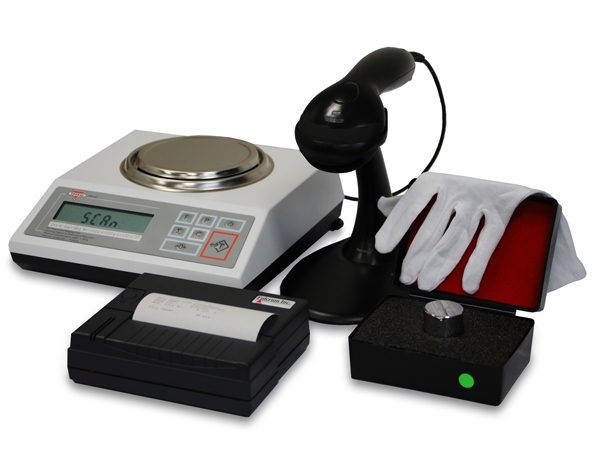

KIT Components

DRX-4C Scale

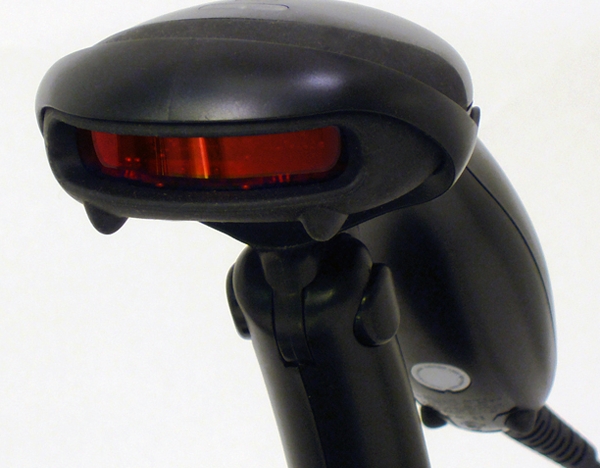

Barcode Scanner

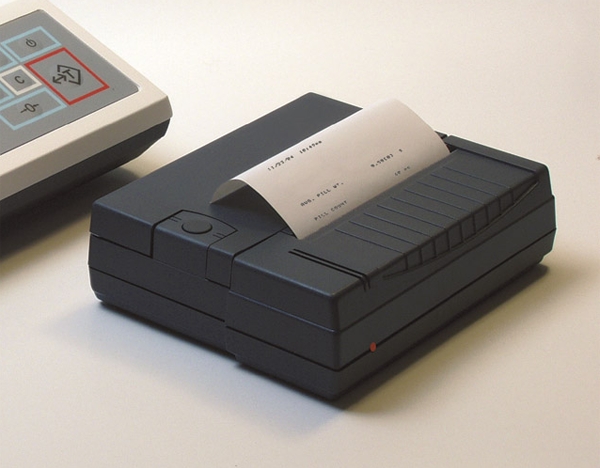

RXP-4 Thermal Printer
Calibration Weight

Compounding and other Functions

Compounding and Recipe Receipt Printing
Used Capacity Indicator

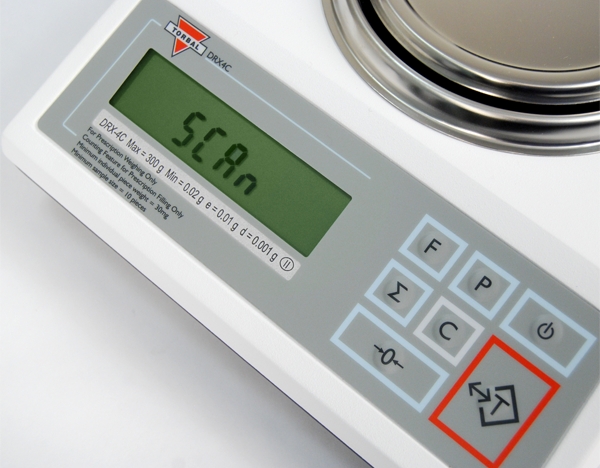

Large LCD and a Sealed Panel
Draft Ring
Calibration and Sealing
Easy-to-use leveling
- Stabilization and Net Weight indicators
- Center of zero indicator
- Automatic zero-setting mechanism (AZSM)
- Initial zero-setting mechanism (IZSM)

Specifications

Counting Feature Specifications

MW (Minimum Piece Weight)	30mg
MSS (Minimum Sample Size)	10 pieces
Sample Size Selection	10, 30, 60
Database Capacity	3,000 NDC codes and pill weights

Scale Specifications

Model	DRX-4C
Capacity (Max)	320g
Minimum Load (Min)	0.02g
Reading Unit (d)	0.001g
Verification Unit (e)	0.01g
Tare Range	-320g
Accuracy Class	II
Temperature	+15C to +30C
Weighing Time	<3s
Pan Dimension	116 mm
Scale Dimensions	235 x 245 x 80 mm
Power Input	120VDC 60Hz 9.5W
Power Output	12VDC 500mA
Scale	8.2 / 3.7
Calibration Weight	300g

RXP-4 Thermal Printer Specifications

Model	RXP-4
Printing Speed	0.8 lines per second
Printing Characters	40 characters per line
Transmission Speed	9600 baud
Transmission Format	8 bits without parity
Paper	Thermal, 4.3" W
Printer Dimensions	165 x 140 x 50 mm
Printer Weight (lb/kg)	1.0 / 0.45
Temperature	+5C to +35C
Humidity	10% - 80 %
Interface	RC232C DIN6
Power Supply	120VAC, 60 Hz, 50 W

Product Gallery

Product Videos

Information

Services & Support

NTEP Certifications

All models are NTEP - certified as prescription scales with approved pill counting features, and meet handbook 44 requirements for a "Class A" prescription balance.

View All Certifications

General Services Administration

All TORBAL DRX pharmacy scales are available for purchase by Federal Government institutions under GSA contract terms and conditions.
