DRX-500s / 300s - Automatic pill counters and counting scales

The KIT is designed to accentuate and optimize the pill counting functions of the scale. The RXK-4 slim keyboard allows for even faster new-drug and data entry into the database. The RXP-4 thermal printer is ideal for producing paper trail receipts which include pill counting transaction details.

Functions and Features

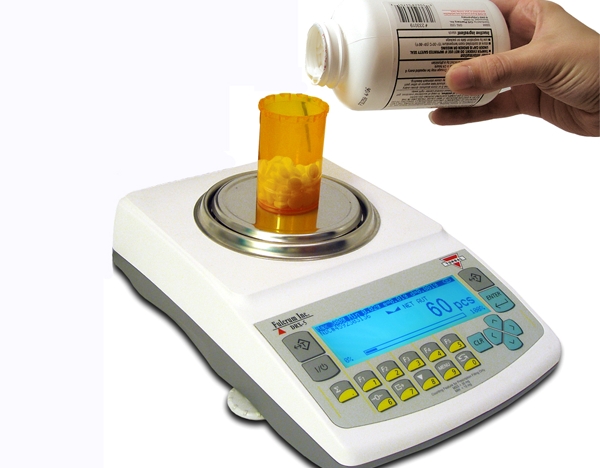

Pill Counting

NTEP Certified
Fast Counting with Direct Vial Filling
10,000 Drug Database Capacity
RX Verification
NDC Data Entry Reminder
Drug Name Labeling
LOT Number Labeling
Onscreen Instructions
Advanced Pill Counting Accuracy
Deviation Warning
Remaining to Fill Display

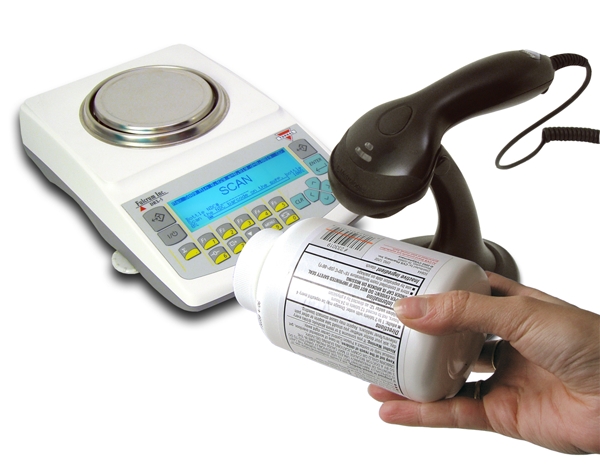

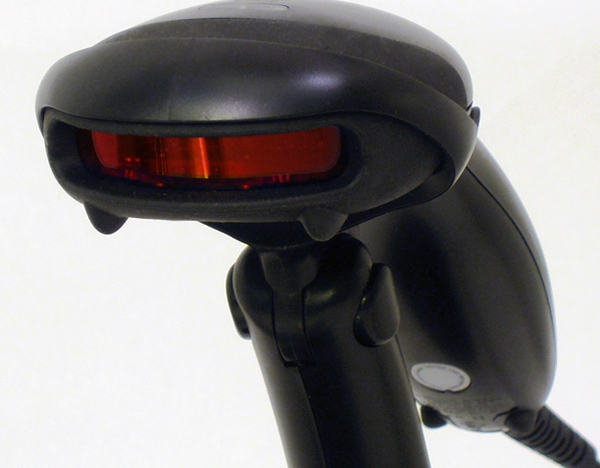

Laser Barcode Scanner
Counting Transaction Printing
PS/2 External Keyboard Port
- Optional RJ45 Network Port*
- RS232 Data Output Port

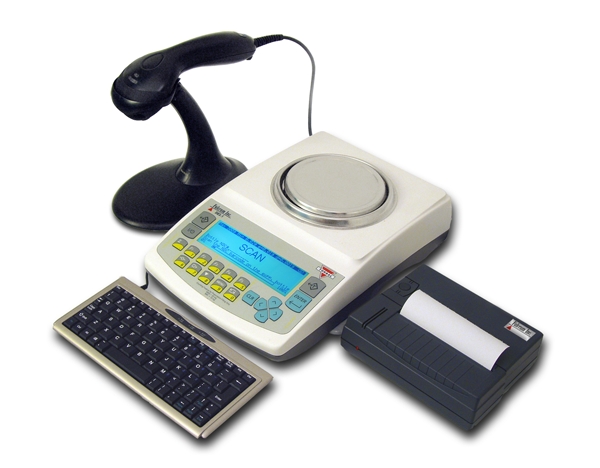

KIT Components

DRX-300s or DRX-500s Scale
Barcode Scanner
RXP-4 Thermal Printer
Super mini size slim keyboard

Other Functions

Auto Calibration
Graphical Display
Sealed Keypad
Navigation Keys
- Dual TARE Keys
- Easy Leveling
- Draft Ring
- AZSM
- IZSM

Specifications

Counting Feature Specifications

Maximum Capacity	10,000 Drugs
MW (Minimum Piece Weight)	30mg ( 3e )
MSS (Minimum Sample Size)	10 pieces
Sample Size Selection	10, 30, 60

Scale Specifications

Maximum Capacity	300g, 500g
Readability (d)	0.001g
Verification Unit (e)	0.01g
Stabilization time (typical)	Approx. 3s
Calibration	Internal and Automatic
Tare Range	-300g, -500g
Accuracy Class	II
Pan Dimension	120mm
Scale Dimensions	216 x 345 x 90 mm
Operating Temperature	+15C to +30C
RS232 Port	Bidirectional
PS2 Keyboard Port	Standard
RJ45 Network Port	Optional
Barcode Scanner	Laser Handheld

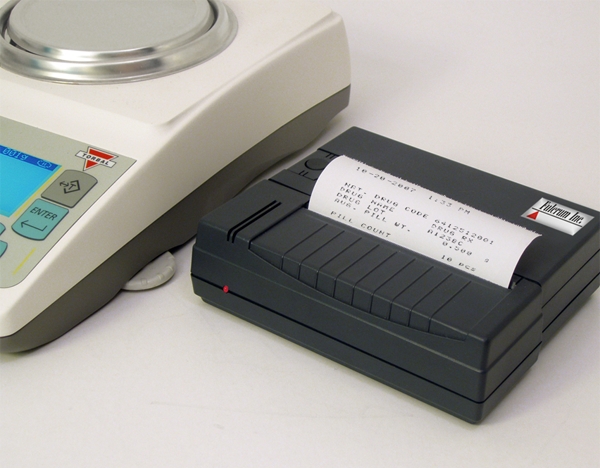

RXP-4 Thermal Printer Specifications

Model	RXP-4
Printing Speed	0.8 lines per second
Printing Characters	40 per line
Transmission Speed	9600 baud
Transmission Format	8 bits
Paper	Thermal, 4.3"W
Size	165 x 140 x 50 mm
Weight	1.0 pounds
Temperature	+5C to +35C
Interface	RC232C DIN6
Power Supply	120VAC,60Hz,50W

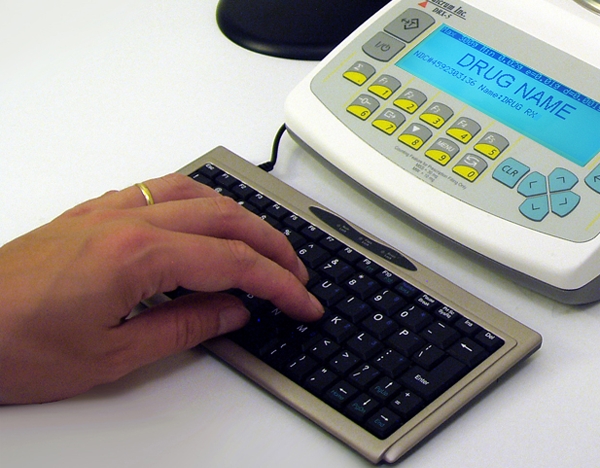

Miniature Slim Keyboard Specifications:

Model	RXK
Number of Keys	77
Key Pitch	16.8 mm
Switch Travel	1.6 +/- .02 mm
Switch Reliability	5 million cycles
Keyboard Dimensions	222 x 103 x 16 mm
Switch Mechanism	Membrane
Interface	PS/2
Operating Temperature	0C to +50C
Power Consumption	+5VDC +/-5% @ 300 mA

Product Gallery

Product Videos

Information

Services & Support

NTEP Certifications

All models are NTEP - certified as prescription scales with approved pill counting features, and meet handbook 44 requirements for a "Class A" prescription balance.

View All Certifications

General Services Administration

All TORBAL DRX pharmacy scales are available for purchase by Federal Government institutions under GSA contract terms and conditions.
