DRX-500sx/nw - Automatic pill counters and counting scales

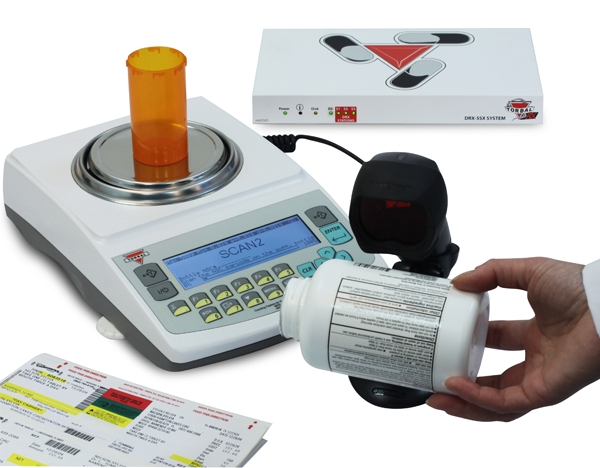

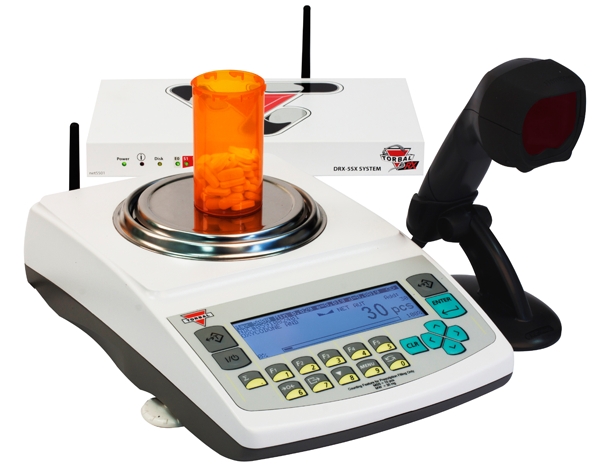

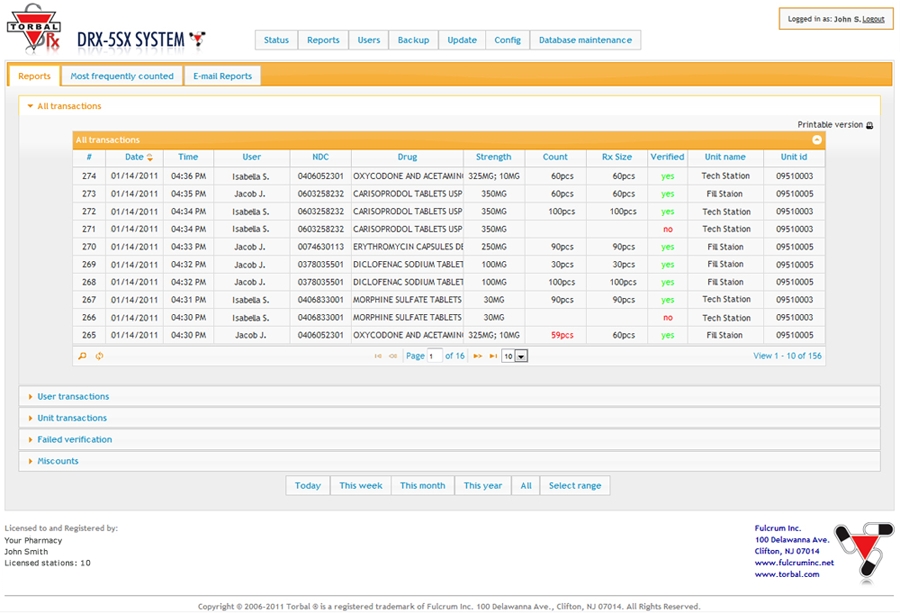

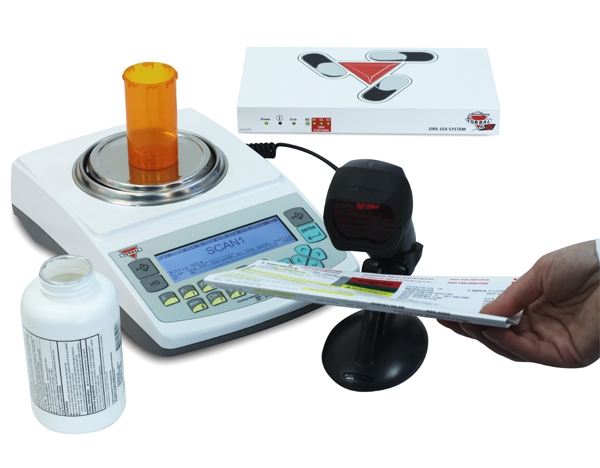

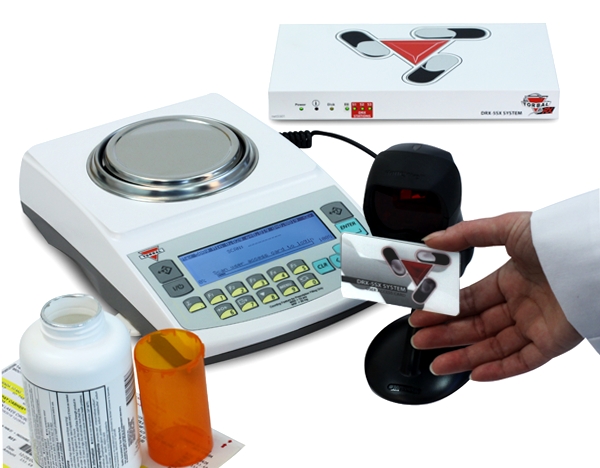

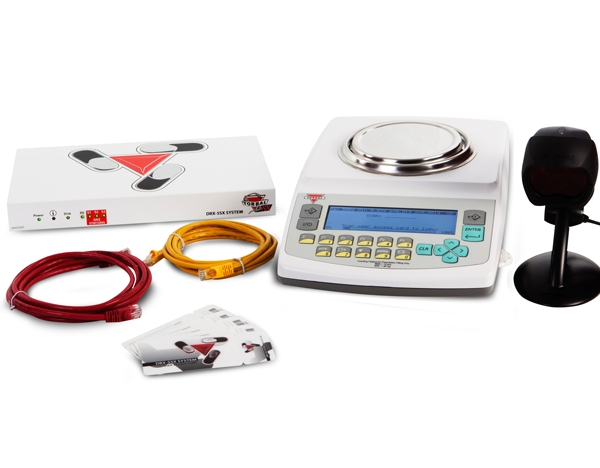

The DRX500sx is our fastest and most powerful pill counter. Capable of counting a 100 pill prescription in less than 20 seconds while displaying drug details and logging the transaction, the 500sx offers a truly exceptional performance. All models are Network and Wi-Fi ready, offering enhanced usability and productivity. With over 30 features and a very affordable price tag, the 500sx has one of the best and fastest Return on Investment ratios in the industry.

Functions and Features

Specifications

Counting Feature Specifications

Database Capacity	6 GB (Available) - Preloaded w/ National Drug Code Directory
MW (Minimum Piece Weight)	30mg ( 3e )
MSS (Minimum Sample Size)	10 pieces
Sample Size Selection	10, 30, 60, 90, 100

Scale Specifications

Maximum Capacity	500g
Readability (d)	0.001g
Verification Unit (e)	0.01g
Stabilization time (typical)	Approx. 3s
Calibration	Internal and Automatic
Tare Range	-500g
Accuracy Class	II
Pan Dimension	120mm
Scale Dimensions	216 x 345 x 90 mm
Operating Temperature	+15C to +30C

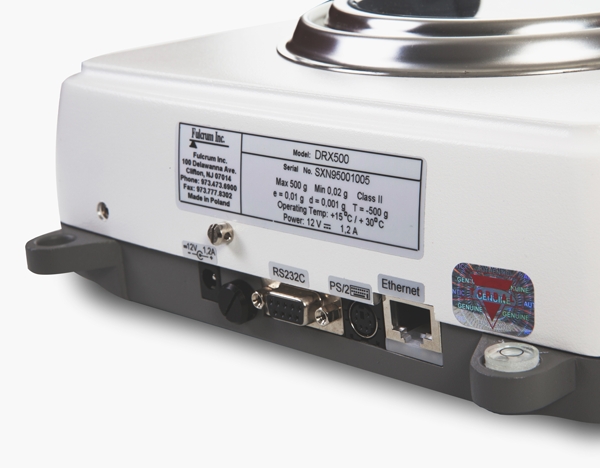

RS232 Port	Bidirectional - used for Scanner and Printer connections
PS2 Keyboard Port	Standard - compatible with any standard PS2 Keyboard
RJ45 Network Port	Standard - TCP/IP Network Connection

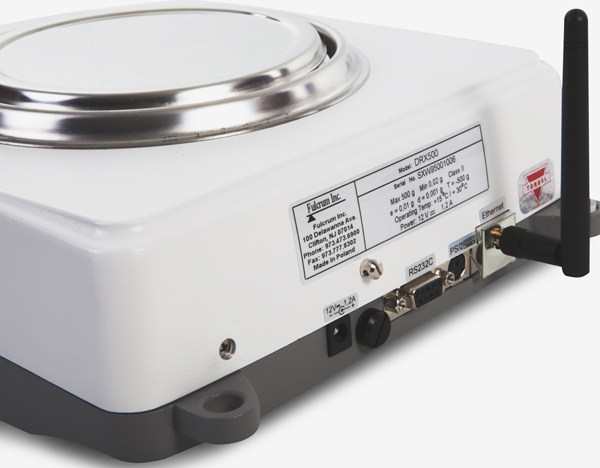

Wi-Fi (500sx /w models)	High Performance "g" Type

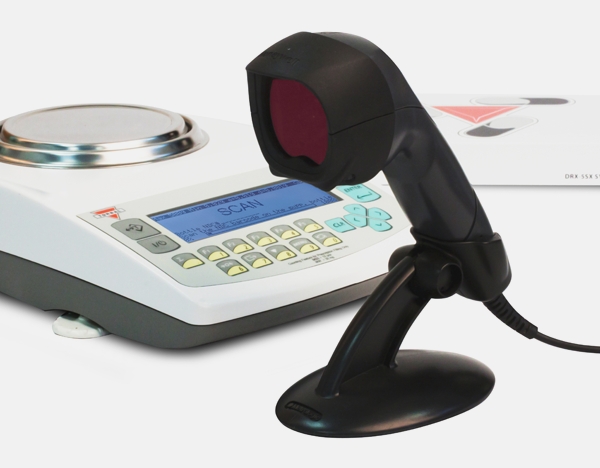

Barcode Scanner	High Performance Omni-directional Laser

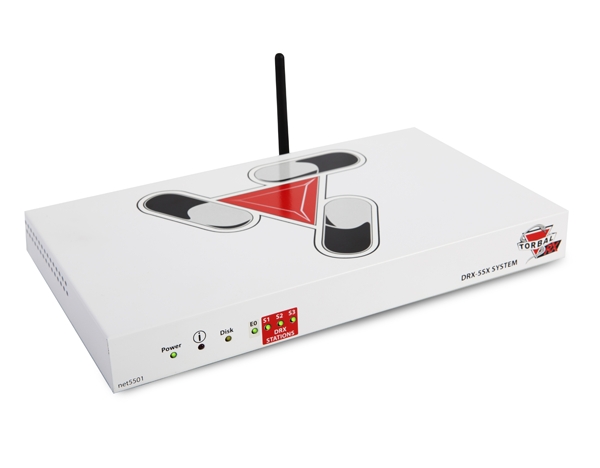

Server Specifications

CPU	500 MHz
RAM Memory	512 MB DDR-SDRAM
Disk Capacity	8 GB
Disk Type	High Performance , premium quality CF card

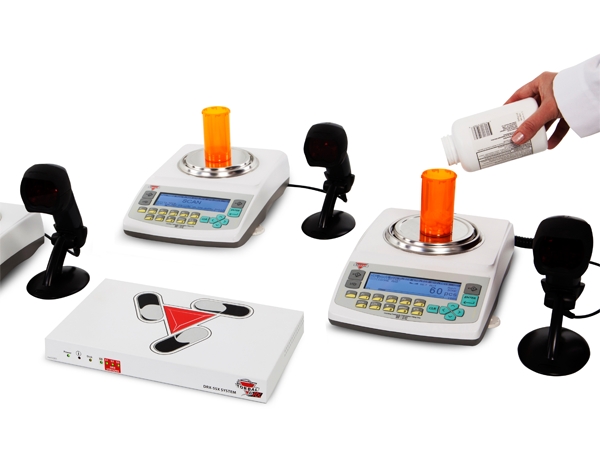

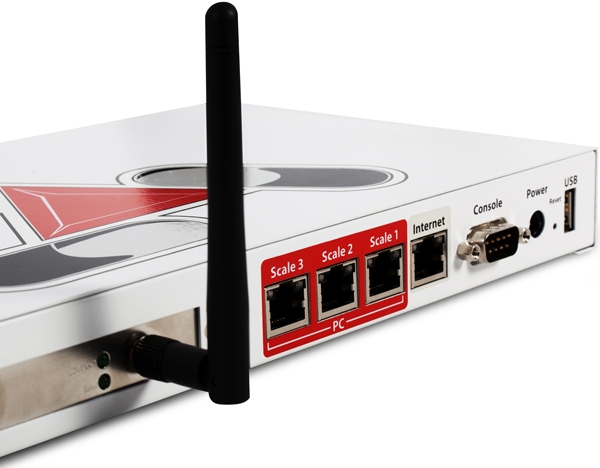

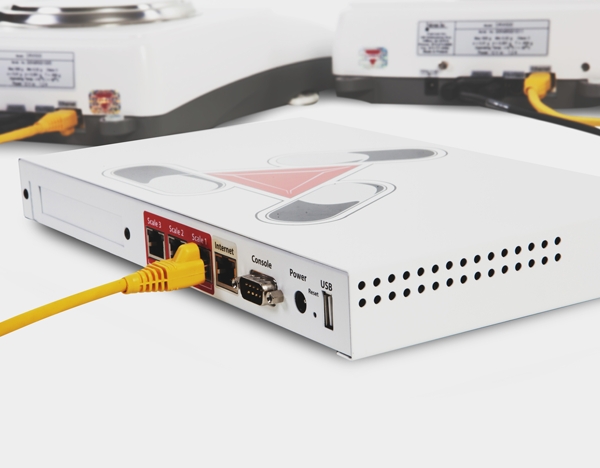

Ports	4 Ethernet ports (1 Internet and 3 Private Scale Ports)
Port Expansion Card (optional)	4 Ethernet ports
Wi-Fi (Wi-Fi models Only)	"g" Type
