DRX-500s Cloud
Automatic pill counters and counting scales

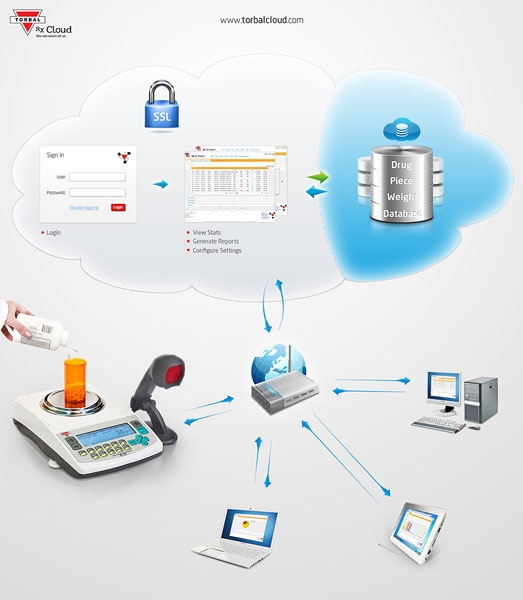

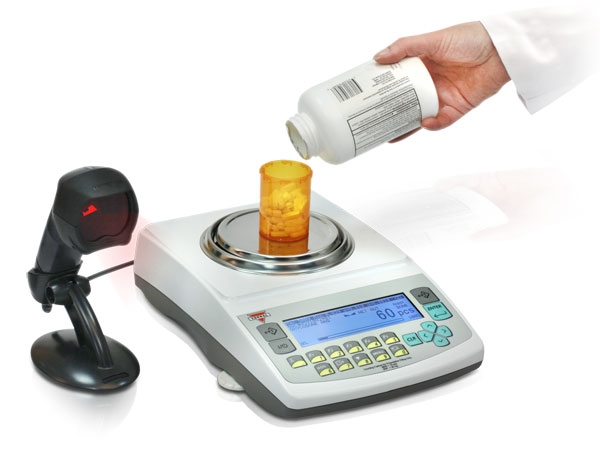

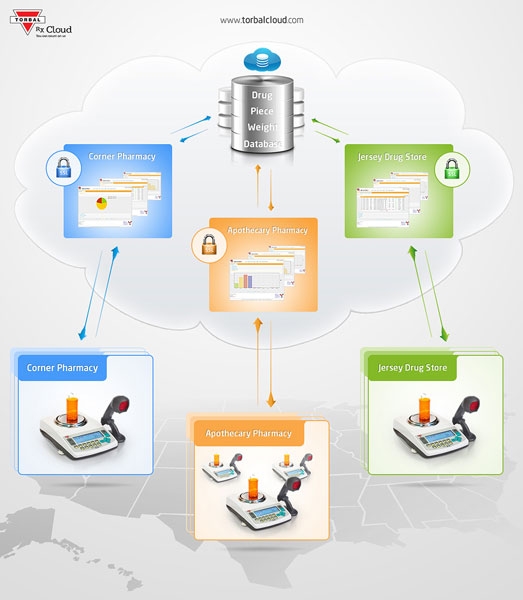

The DRX500s CLOUD is one of the most accurate, powerful, and affordable pill counters available. The Pill Counter connects to a TORBAL CLOUD server via internet to retrieve most up-to-date drug information and record pill counting transactions. Users are given access to a private online account that can be accessed from any PC, Laptop, or Tablet. The CLOUD is preloaded with the entire NDC directory and over 3,000 drug piece weights. The setup is plug-n-play; a typical prescription count is performed in less than 20 seconds. Full bottle inventory counts are typically performed in less than 10 seconds. Best of all – THE CLOUD IS FREE

Advantages & How it works...

Functions and Features

Pill Counting

Preloaded National Drug Code directory and Drug Weight Database
Ultra-Fast Counting with direct vial filling
Superb Inventory Counter
Advanced Pill Counting Accuracy
Pill Fragment Detection

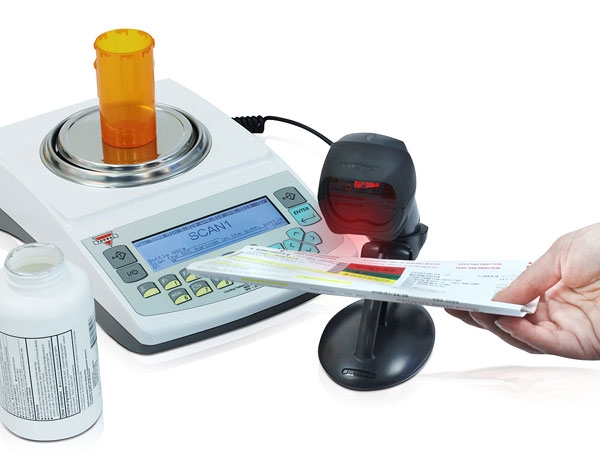

Rx and NDC Verification
Private Online Cloud Account for detailed reporting and activity monitoring
Automatic E-mail Reporting and Instant E-mail Alerts for user caused miscounts
Automatic updating with Advanced Pill Counting Accuracy (APA)
Quick User Barcode login options
Prescription Size Tracking
Onscreen Instructions
Premium High Performance Laser Barcode Scanner
Transaction Printing
NTEP Certified and Legal for Trade

Other Functions

Auto Calibration

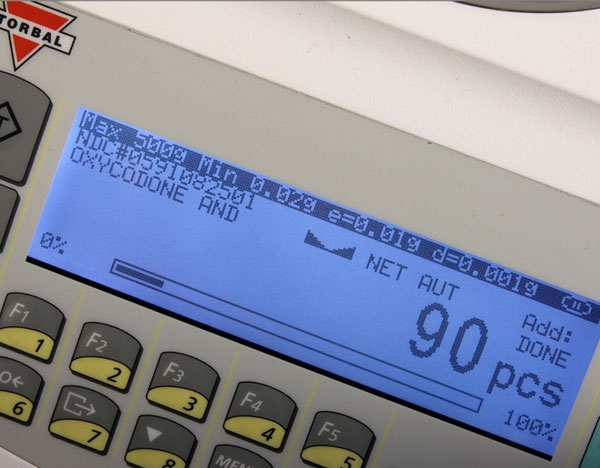

Graphical Display
Sealed Keypad
Navigation Keys
- Dual TARE Keys
- Easy Leveling
- Draft Ring
- AZSM
- IZSM

Specifications

Counting Feature Specifications

Database	Over 3,000 Drug Weights, Preloaded w/ National Drug Code Directory
MW (Minimum Piece Weight)	30mg ( 3e )
MSS (Minimum Sample Size)	10 pieces
Sample Size Selection	10, 30, 60, 90, 100

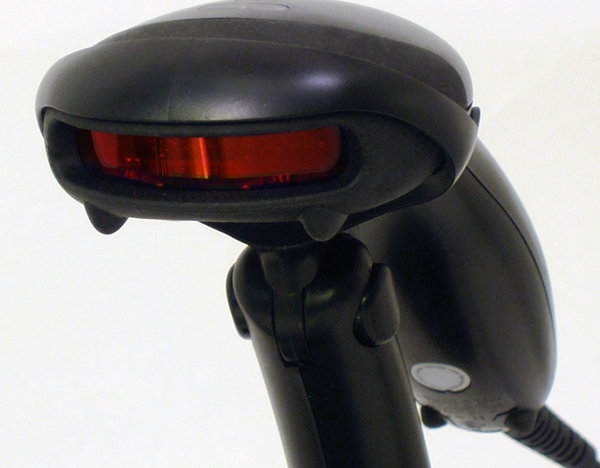

Barcode Scanner	Single Line Laser (standard) High Performance Omni-directional Laser (optional)

Scale Specifications

Maximum Capacity	500g
Readability (d)	0.001g
Verification Unit (e)	0.01g
Stabilization time (typical)	Approx. 3s
Calibration	Internal and Automatic
Tare Range	-500g
Accuracy Class	II
Pan Dimension	120mm
Scale Dimensions	216 x 345 x 90 mm
Operating Temperature	+15C to +30C

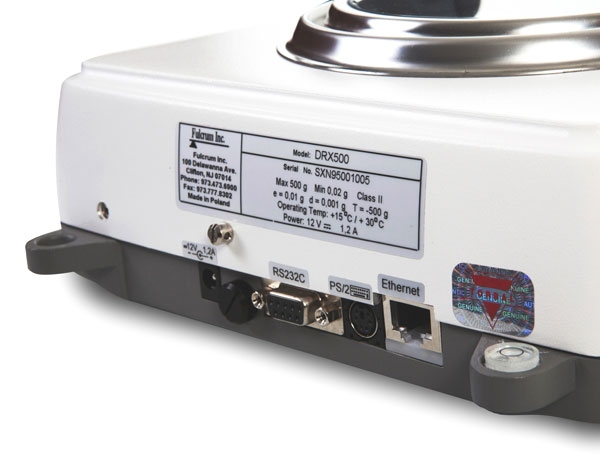

RS232 Port	Bidirectional - used for Scanner and Printer connections
PS2 Keyboard Port	Standard - compatible with any standard PS2 Keyboard
RJ45 Network Port	Standard - TCP/IP Network Connection

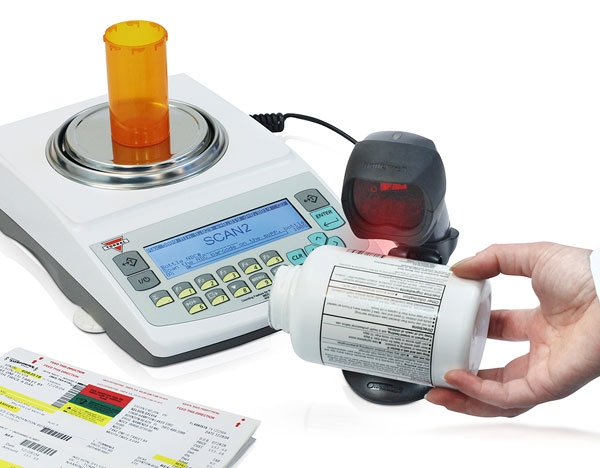

Product Gallery

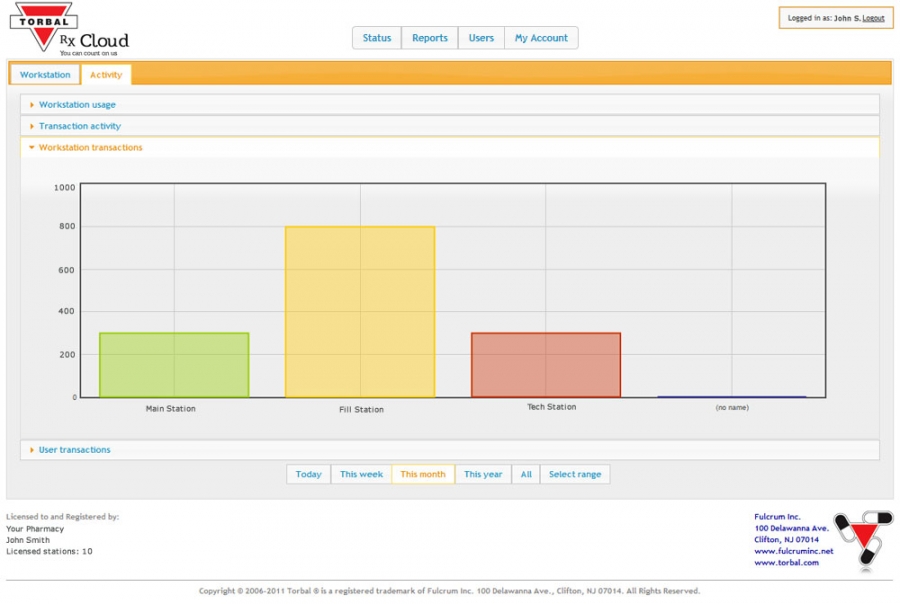

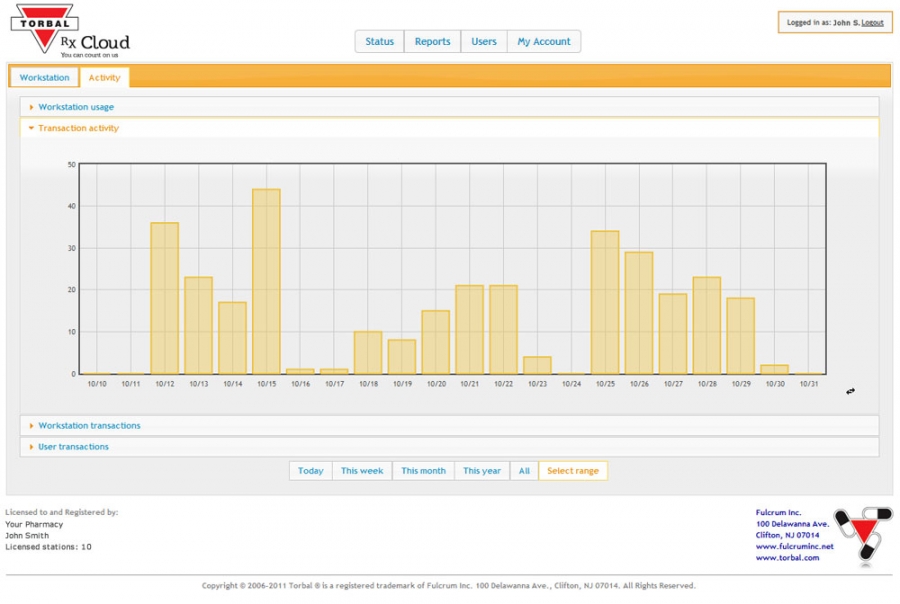

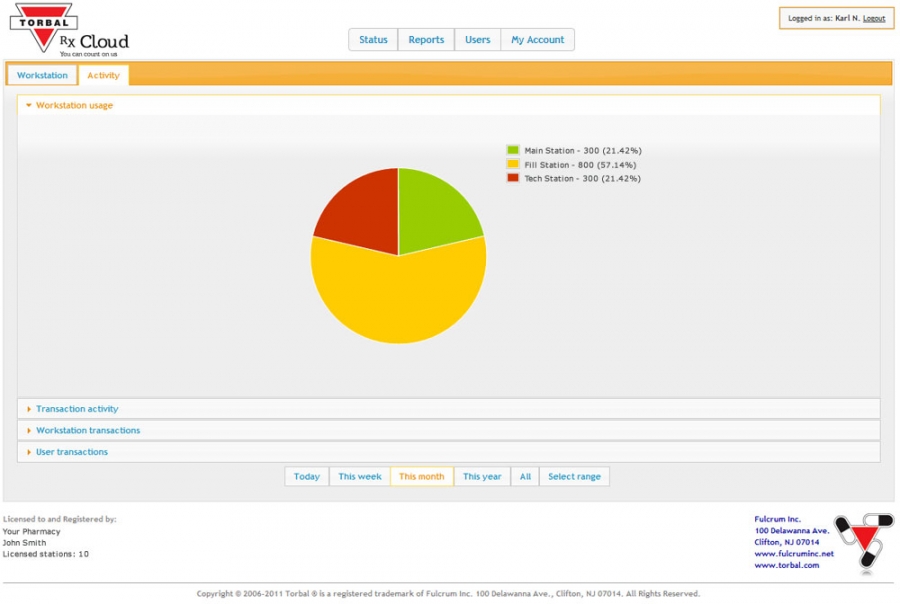

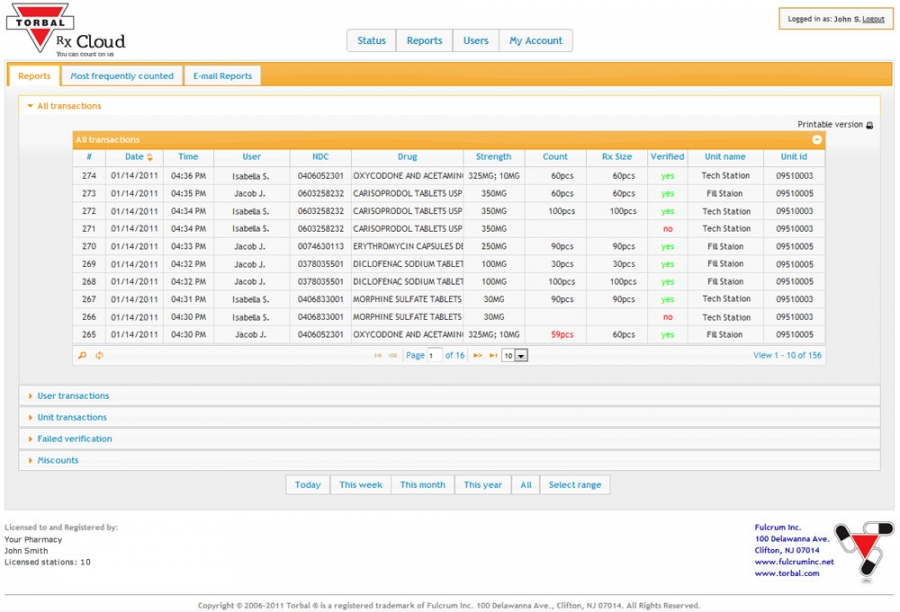

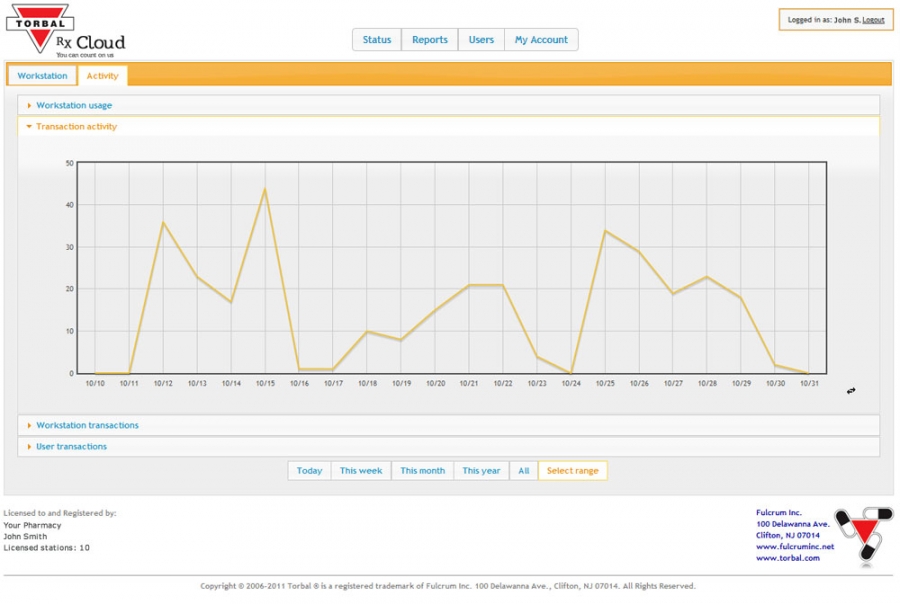

Admin Panel Screenshots

Information

Services & Support

NTEP Certifications

All models are NTEP - certified as prescription scales with approved pill counting features, and meet handbook 44 requirements for a "Class A" prescription balance.

View All Certifications

General Services Administration

All TORBAL DRX pharmacy scales are available for purchase by Federal Government institutions under GSA contract terms and conditions.
